The best technology to use for dropping excessive broadcast traffic on ingress to an ArubaOS-CX switch is rate limiting. Rate limiting is a feature that allows network administrators to control the amount of traffic that enters or leaves a port or a VLAN on a switch by setting bandwidth thresholds or limits. Rate limiting can be used to prevent network congestion, improve network performance, enforce service level agreements(SLAs), or mitigate denial-of-service (DoS) attacks. Rate limiting can be applied to broadcast traffic on ingress to an ArubaOS-CX switch by using the storm-control command in interface configuration mode. This command allows network administrators to specify the percentage of bandwidth or packets per second that can be used by broadcast traffic on an ingress port. If the broadcast traffic exceeds the specified threshold, the switch will drop the excess packets.
The other options are not technologies for dropping excessive broadcast traffic on ingress because:
DWRR queuing: DWRR stands for Deficit Weighted Round Robin, which is a queuing algorithm that assigns different weights or priorities to different traffic classes or queues on an egress port. DWRR ensures that each queue gets its fair share of bandwidth based on its weight while avoiding starvation of lower priority queues. DWRR does not drop excessive broadcast traffic on ingress, but rather schedules outgoing traffic on egress.

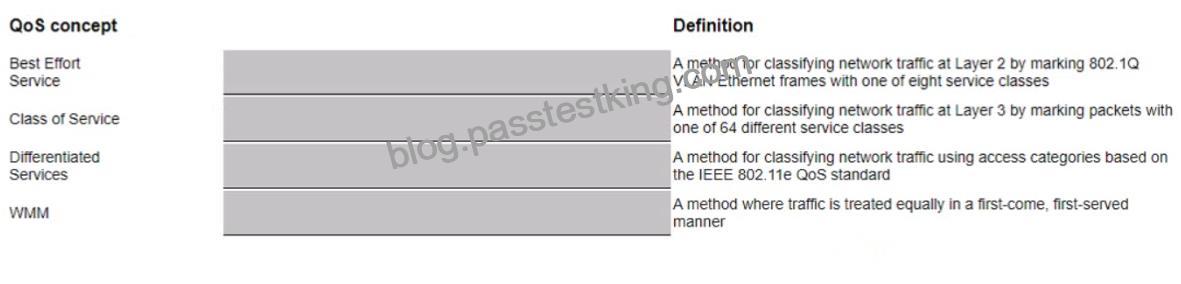

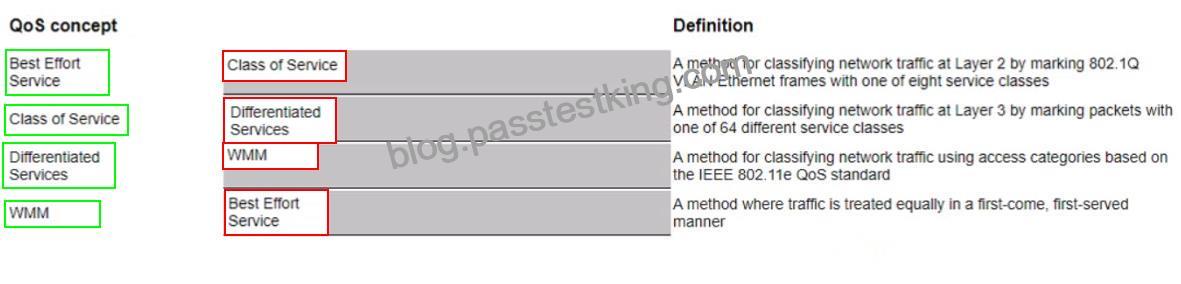

QoS shaping: QoS stands for Quality of Service, which is a set of techniques that manage network resources and provide different levels of service to different types of traffic based on their requirements.
QoS shaping is a technique that delays or buffers outgoing traffic on an egress port to match the available bandwidth or rate limit. QoS shaping does not drop excessive broadcast traffic on ingress, but rather smooths outgoing traffic on egress.
Strict queuing: Strict queuing is another queuing algorithm that assigns different priorities to different traffic classes or queues on an egress port. Strict queuing ensures that higher priority queues are always served before lower priority queues regardless of their bandwidth requirements or weights. Strict queuing does not drop excessive broadcast traffic on ingress, but rather schedules outgoing traffic on egress.
References: https://en.wikipedia.org/wiki/Rate_limiting
https://www.arubanetworks.com/techdocs/AOS-CX_10_08/NOSCG/Content/cx-noscg/qos/storm-control.htm
https://www.arubanetworks.com/techdocs/AOS-CX_10_08/NOSCG/Content/cx-noscg/qos/dwrr.htm
https://www.arubanetworks.com/techdocs/AOS-CX_10_08/NOSCG/Content/cx-noscg/qos/shaping.htm
https://www.arubanetworks.com/techdocs/AOS-CX_10_08/NOSCG/Content/cx-noscg/qos/strict.htm

The signal to noise ratio (SNR) is a measure that compares the level of a desired signal to the level of background noise. SNR is defined as the ratio of signal power to the noise power, often expressed in decibels (dB). A high SNR means that the signal is clear and easy to detect or interpret, while a low SNR means that the signal is corrupted or obscured by noise and may be difficult to distinguish or recover3. To calculate the SNR in dB, we can use the following formula:
SNR (dB) = Signal power (dBm) – Noise power (dBm)
In this question, we are given that the noise floor measures -90 dBm (0.000000001 milliwatts) and the receiver’s signal strength is -65 dBm (0.000316 milliwatts). Therefore, we can plug these values into the formula and get:
SNR (dB) = -65 dBm – (-90 dBm) SNR (dB) = -65 dBm + 90 dBm SNR (dB) = 25 dBm Therefore, the correct answer is that the SNR is 25 dBm.

LACP is a protocol that allows multiple physical links to be aggregated into a single logical link for increased bandwidth and redundancy. LACP must be configured on both ends of the link for it to work properly. In this case, EDGE1 has LACP configured on its uplink port-channel 1, but CORE1 does not have LACP configured on its corresponding port-channel 1. This causes a mismatch and prevents the link from coming up.
References: https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos- solutions/1-ov

Explanation

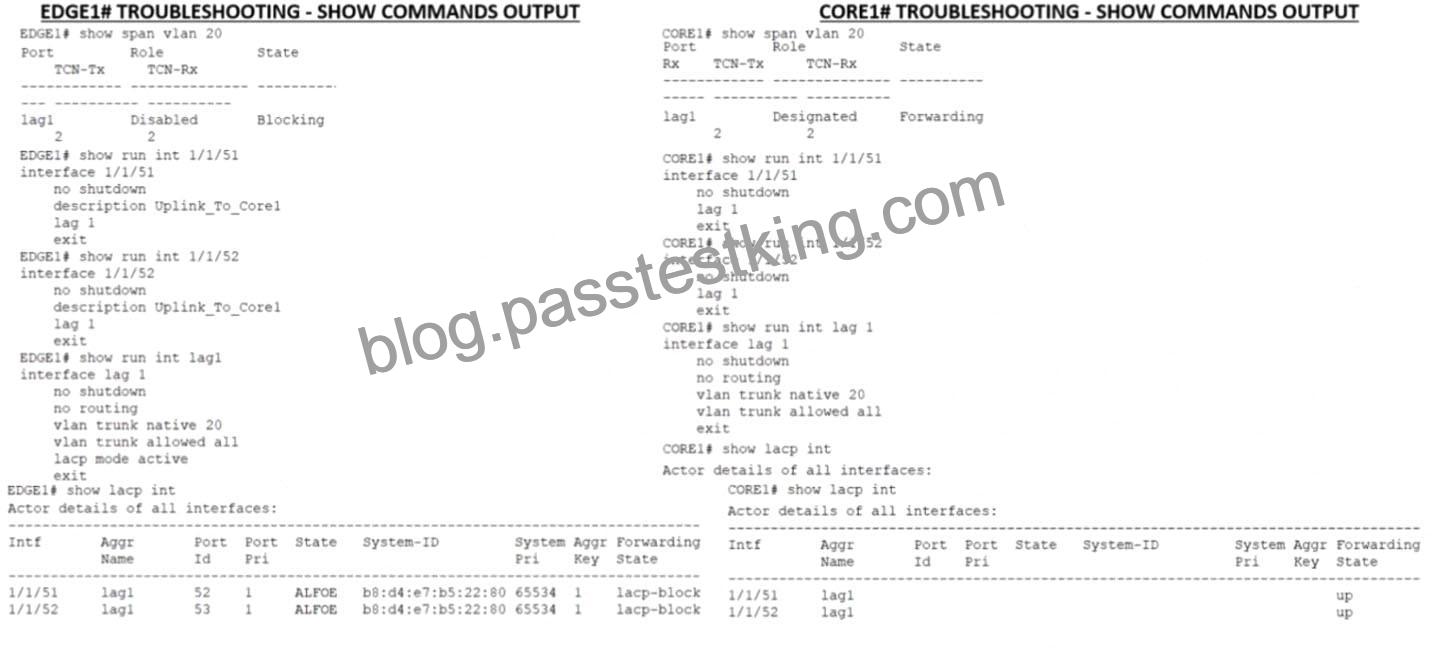

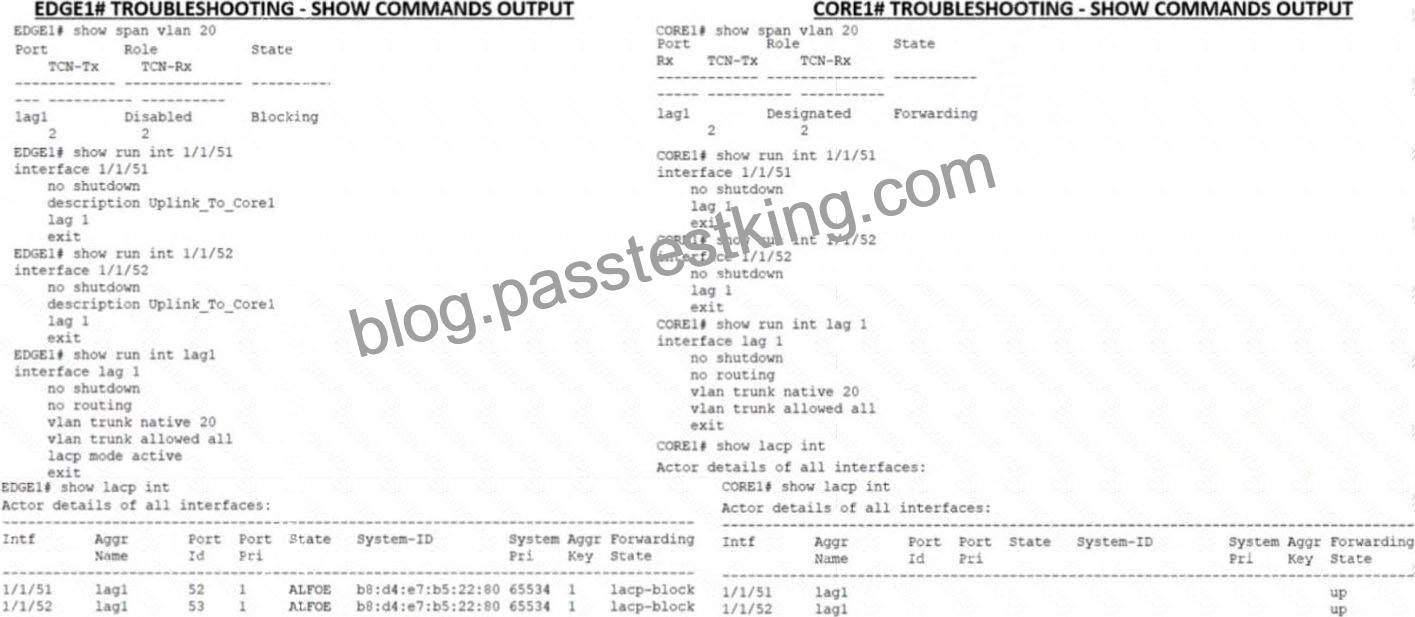

These commands might help troubleshoot this issue as they check various aspects of the connectivity between the edge switch and the core switch, such as Layer 3 reachability, Layer 2 adjacency, LACP configuration and status, VLAN trunking configuration, and interface status.
References:https://www.arubanetworks.com/techdocs/AOS-CX_10_04/CLI/GUID-8F0E7E8B-0F4B-4A3C-AE7

In Aruba Central during group creation, users can define various configuration groups to manage settings for multiple devices. A Security group allows you to apply consistent security settings across devices, and a Template group enables you to apply pre-defined configurations to devices. These groups help streamline the deployment and management of network devices in Aruba Central.

The command that is used to set a default route to 10.4.5.1 on an Aruba CX switch when in-band management using an SVI is being used is ip route 0.0 0 0/0 10.4.5.1 . This command specifies the destination network address (0.0 0 0) and prefix length (/0) and the next-hopaddress (10.4.5.1) for reaching any network that is not directly connected to the switch. The default route applies to the default VRF Virtual Routing and Forwarding. VRF is a technology that allows multiple instances of a routing table to co-exist within the same router at the same time. VRFs are typically used to segment network traffic for security, privacy, or administrative purposes. , which is used for in-band management traffic that goes through an SVI Switch Virtual Interface. SVI is a virtual interface on a switch that allows the switch to route packets between different VLANs on the same switch or different switches that are connected by a trunk link. An SVI is associated with a VLAN and has an IP address and subnet mask assigned to it12. References: 1 https://www.
arubanetworks.com/techdocs/AOS-CX/10_08/HTML/ip_route_4100i-6000-6100-6200/Content
/Chp_StatRoute/def-rou.htm 2 https://www.arubanetworks.com/techdocs/AOS-CX/10_08/HTML
/ip_route_4100i-6000-6100-6200/Content/Chp_VRF/vrf-overview.htm

Explanation
The source that WPA3-Personal uses to generate a different Pairwise Master Key (PMK) each time a station connects to the wireless network is session-specific information (MACs and nonces). WPA3-Personal uses Simultaneous Authentication of Equals (SAE) to replace PSK authentication in WPA2-Personal. SAE is a secure key establishment protocol that uses a Diffie-Hellman key exchange to derive a shared secret between two parties without revealing it to an eavesdropper. SAE involves the following steps:
The station and the access point exchange Commit messages that contain their MAC addresses and random numbers called nonces.
The station and the access point use their own passwords and the received MAC addresses and nonces to calculate a shared secret called SAE Password Element (PE).
The station and the access point use their own PE and the received MAC addresses and nonces to calculate a shared secret called SAE Key Seed (KS).
The station and the access point use their own KS and the received MAC addresses and nonces to calculate a shared secret called SAE Key Confirmation Key (KCK).
The station and the access point use their own KCK and the received MAC addresses and nonces to calculate a confirmation value called SAE Confirm.
The station and the access point exchange Confirm messages that contain their SAE Confirm values.
The station and the access point verify that the received SAE Confirm values match their own calculated values. If they match, the authentication is successful and the station and the access point have established a shared secret called SAE PMK.
The SAE PMK is different for each session because it depends on the MAC addresses and nonces that are exchanged in each authentication process. The SAE PMK is used as an input for the 4-way handshake that generates the Pairwise Temporal Key (PTK) for encrypting data frames.
The other options are not sources that WPA3-Personal uses to generate a different PMK each time a station connects to the wireless network because:
Opportunistic Wireless Encryption (OWE): OWE is a feature that provides encryption for open networks without requiring authentication or passwords. OWE uses a similar key establishment protocol as SAE, but it does not generate a PMK. Instead, it generates a Pairwise Secret (PS) that is used as an input for the 4-way handshake that generates the PTK.
Simultaneous Authentication of Equals (SAE): SAE is not a source, but a protocol that uses session-specific information as a source to generate a different PMK each time a station connects to the wireless network.
Key Encryption Key (KEK): KEK is not a source, but an output of the 4-way handshake that generates the PTK. KEK is used to encrypt group keys that are distributed by the access point.
References: https://www.wi-fi.org/discover-wi-fi/wi-fi-certified-6e
https://www.wi-fi.org/file/wi-fi-alliance-unlicensed-spectrum-in-the-us
https://www.cisco.com/c/en/us/products/collateral/wireless/catalyst-9100ax-access-points/wpa3-dep-guide-og.ht
https://info.support.huawei.com/info-finder/encyclopedia/en/WPA3.html
https://rp.os3.nl/2019-2020/p99/presentation.pdf

LACP is a protocol that allows multiple physical links to be aggregated into a single logical link for increased bandwidth and redundancy. LACP must be configured on both ends of the link for it to work properly. In this case, EDGE1 has LACP configured on its uplink port-channel 1, but CORE1 does not have LACP configured on its corresponding port-channel 1. This causes a mismatch and prevents the link from coming up.References:
https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview
/lacp.htm

A static route is a route that is manually configured on a router or switch and does not change unless it is modified by an administrator. Static routes are used to specify how traffic should reach specific destinations that are not directly connected to the device or that are not reachable by dynamic routing protocols. In Aruba CX switches, static routes can be configured using the ip route command in global configuration mode. Based on the “show ip route” output on an Aruba CX 8400 switch, the route “10.1 20 0/24, vrf default via 10.1.12.2, [1/0]” is a static route because it has an administrative distance of 1 and a metric of 0, which are typical values for static routes. Reference: https://en.wikipedia.org/wiki/Static_routing https://www.arubanetworks.com/techdocs/AOS-CX_10_04/NOSCG/Content/cx-noscg/ip-routing/static-routes.htm https://www.arubanetworks.com/techdocs/AOS-CX_10_04/NOSCG/Content/cx-noscg/ip-routing/show-ip-route.htm

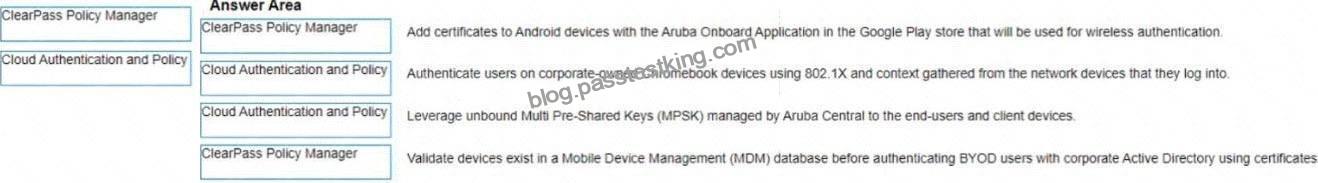

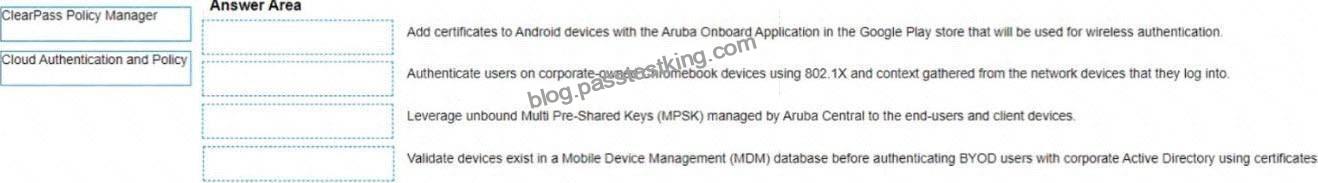

EAP-TEAP is a tunnel-based authentication method that supports both device and user authentication within a single RADIUS session. ClearPass 6.9 supports EAP-TEAP as anauthentication method for Windows 10 clients.

Explanation:

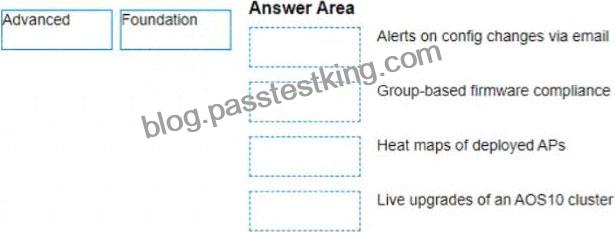

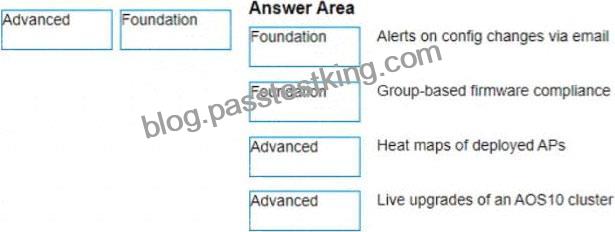

a) Alerts on config changes via email – Foundation
b) Group-based firmware compliance – Foundation
c) Heat maps of deployed APs – Advanced
d) Live upgrades of an AOS10 cluster – Advanced
According to the Aruba Central Licensing Guide1, the Foundation License provides basic device management features such as configuration, monitoring, alerts, reports, firmware management, etc. The Advanced License provides additional features such as AI insights, WLAN services, NetConductor Fabric, heat maps, live upgrades, etc.
https://www.arubanetworks.com/techdocs/central/2.5.3/content/pdfs/licensing-guide.pdf

Explanation:

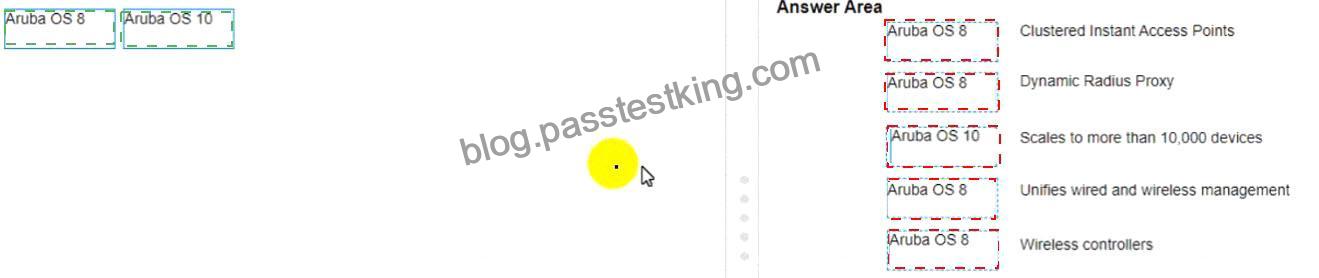

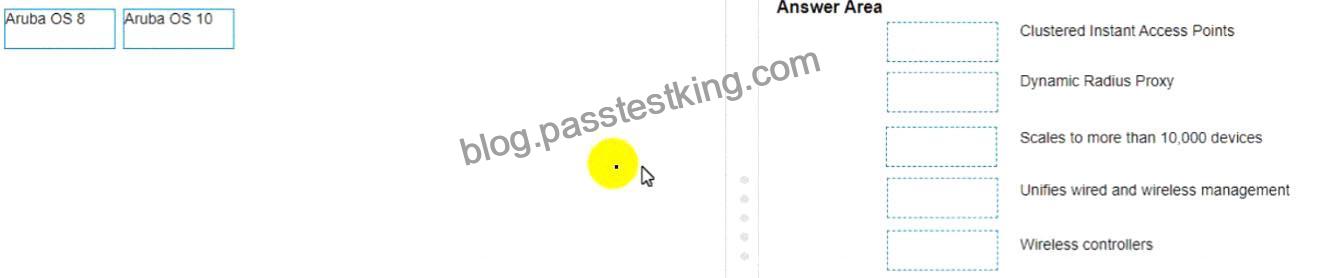

Features: 1) Clustered Instant Access Points Aruba OS version: a) Aruba OS 8 Features: 2) Dynamic Radius Proxy Aruba OS version: a) Aruba OS 8 Features: 3) Scales to more than 10,000 devices Aruba OS version: b) Aruba OS 10 Features: 4) Unifies wired and wireless management Aruba OS version: a) Aruba OS 8 Features: 5) Wireless controllers Aruba OS version: a) Aruba OS 8 ArubaOS is the operating system for all Aruba Mobility Controllers (MCs) and controller-managed wireless access points (APs). ArubaOS 8 delivers unified wired and wireless access, seamless roaming, enterprise grade security, and a highly available network with the required reliability to support high density environments1. Some of the features of ArubaOS 8 are:
* Clustered Instant Access Points: This feature allows multiple Instant APs to form a cluster and share configuration and state information. This enables seamless roaming, load balancing, and fast failover for clients2.
* Dynamic Radius Proxy: This feature allows an MC to act as a proxy for RADIUS authentication requests from clients or APs. This simplifies the configuration and management of RADIUS servers and reduces the network traffic between MCs and RADIUS servers3.
* Wireless controllers: Aruba wireless controllers are devices that centrally manage and control the wireless network. They provide functions such as AP provisioning, configuration, security, policy enforcement, and network optimization.
ArubaOS 10 is the next-generation operating system that works with Aruba Central, a cloud-based network management platform. ArubaOS 10 delivers greater scalability, security, and AI-powered optimization across large campuses, branches, and remote work environments. Some of the features of ArubaOS 10 are:
* Scales to more than 10,000 devices: ArubaOS 10 can support up to 10,000 devices per cluster, which is ten times more than ArubaOS 8. This enables customers to scale their networks without compromising performance or reliability.
* Unifies wired and wireless management: ArubaOS 10 provides a single platform for managing both wired and wireless devices across the network. Customers can use Aruba Central to configure, monitor, troubleshoot, and update their devices from anywhere.
Both ArubaOS 8 and ArubaOS 10 share some common features, such as:
* Unifies wired and wireless management: Both operating systems provide unified wired and wireless access for customers who use Aruba switches and APs. Customers can use a single interface to manage their entire network infrastructure1 . References: 1 https://www.arubanetworks.com/resource/arubaos-8- fundamental-guide/ 2 https://www.arubanetworks.com/techdocs/Instant_86_WebHelp/Content/instant- ug/iap-maintenance/cluster.htm 3 https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help
/Content/arubaos-solutions/1-overview/dynamic-radius-proxy.htm https://www.arubanetworks.com
/products/networking/controllers/ https://www.arubanetworks.com/products/network-management- operations/arubaos/ https://blogs.arubanetworks.com/solutions/making-the-switch/ https://www.
arubanetworks.com/products/network-management-operations/aruba-central/

Layer 2, the Data Link layer, uses MAC addresses for link-layer addressing. MAC addresses uniquely identify network interfaces on the local network segment and are used by switches to forward Ethernet frames between devices.

The Aruba CX 6300 Series is an ideal access switch for medium to high-density client environments, offering a range of models that can accommodate various port densities and types. For a distribution rack supporting
200-380 clients, printers, and APs, the CX 6300 provides the necessary port density and performance capabilities, including high-speed uplinks, support for Class 4 PoE (PoE+), and stacking capabilities. This series is cost-effective and designed for enterprises requiring reliable connectivity and consistent performance. The other options, such as the CX 6400, CX 6200, and CX 6000, may either be over-specified and more expensive (CX 6400), not offer the necessary port density (CX 6200), or not exist in the product line (CX 6000).
