Pass Fortinet FCSS_LED_AR-7.6 Exam Info and Free Practice Test

Fortinet FCSS_LED_AR-7.6 Exam Syllabus Topics:

Section	Weight	Objectives
Topic 1: Authentication	25%	– Advanced authentication with RADIUS and LDAP – Two-factor authentication (2FA) and digital certificates – FortiAuthenticator configuration: syslog, RADIUS Single Sign-On (RSSO)
Topic 2: Central Management & Deployment	25%	– FortiAP and FortiExtender management – VLAN, port, trunk configuration and policy enforcement – Zero-touch provisioning and device onboarding – FortiSwitch management via FortiManager over FortiLink
Topic 3: Zero-Trust LAN Access	30%	– Machine authentication, MAC Authentication Bypass – NAC policies for wired and wireless networks – FortiLink NAC, dynamic VLAN, VLAN pooling – Guest portal and secure access deployment
Topic 4: Monitoring & Troubleshooting	20%	– Wireless connectivity and performance monitoring – FortiAIOps and analytics tools usage – Troubleshooting FortiSwitch, FortiAP, FortiGate integration – Quarantine and security enforcement

NEW QUESTION 16
A network administrator connects a new FortiGate to the network, allowing it to automatically discover and register with FortiManager. What occurs after FortiGate retrieves the FortiManager address?

FortiGate sends a discovery request to all devices on the local network using UDP port 1068.

FortiGate establishes a secure tunnel to FortiManager over TCP port 541.

FortiGate configures its interface settings based on a DHCP response from FortiManager.

The device needs to be manually authorized on FortiManager.

After discovering and registering with FortiManager, the FortiGate remains in a pending state until it is manually authorized on FortiManager, which allows the management relationship to be fully established.

NEW QUESTION 17
A network administrator is deploying a new FortiGate firewall and wants to enable zero-touch provisioning with FortiManager. The administrator has not manually configured the FortiManager IP address or FQDN on FortiGate. However, FortiGate can still discover FortiManager automatically.
In this situation, where can FortiGate learn the FortiManager IP address or FQDN for zero-touch provisioning?

By retrieving options 240 or 241 from a DHCP server

By querying the local ARP table for the FortiManager IP address.

By the default static route configuration on FortiGate.

By checking the FortiGate factory default configuration.

For zero-touch provisioning, FortiGate can automatically discover FortiManager by retrieving DHCP options 240 or 241 from the DHCP server. These options provide the FortiManager IP address or FQDN, enabling FortiGate to establish communication without manual configuration.

NEW QUESTION 18
Refer to the exhibits.

The exhibits show the VAP configuration. Wi-Fi SSIDs. and zone table.
Which two statements describe how FortiGate handles VLAN assignment for wireless clients? (Choose two.)

FortiGate will load balance clients using VLAN 101 and VLAN 102 and assign them an IP address from the 10.0.3.0/24 subnet.

All clients connecting to the Corp Zone will receive an IP address from the 10.0.20.0/24 subnet.

Clients connecting to APs in the Floor 1 group will not be able to receive an IP address.

Clients connecting to APs in the Office group will be assigned to VLAN 102.

Analysis of the VAP Configuration (Image 1): The VAP named ” Corporate ” has set vlan-pooling wtp-group, which maps directly to the Managed AP Group VLAN pooling method. The study guide states: ” The Managed AP Group load balance method assigns VLANs from pools based on AP location. ” This means VLAN assignment is NOT load-balanced (no round-robin or hash) – instead, it is determined by which WTP (Wireless Termination Point) group the AP physically belongs to:
* APs in wtp-group ” Floor_1 ” # assigned VLAN 101 (Corp.101)
* APs in wtp-group ” Office ” # assigned VLAN 102 (Corp.102)
Why C is CORRECT: From Image 2, the interface Corp.101 (VLAN 101 – assigned to the Floor_1 AP group) shows an IP address of 0.0.0.0/0.0.0.0, meaning no IP address or DHCP server is configured on that interface. Therefore, clients connecting to APs in the Floor_1 group will be placed on VLAN 101 but will not be able to obtain an IP address – confirming option C.
Why D is CORRECT: The VAP configuration explicitly maps wtp-group ” Office ” to VLAN 102. The study guide confirms that with the Managed AP Group method, VLANs are assigned based on AP group membership. APs belonging to the ” Office ” group will have all their clients assigned to VLAN 102 (Corp.
102), which has a configured IP of 10.0.20.1/255.255.255.0 – confirming option D.
Why the other options are wrong:
* A is incorrect – The wtp-group pooling method does not load balance; it assigns VLANs based on AP group location. Round-robin or hash would be needed for load balancing. Additionally, the subnet
10.0.3.0/24 does not exist anywhere in either exhibit.
* B is incorrect – Corp.zone contains both Corp.101 and Corp.102. Since Corp.101 has no IP configured (0.0.0.0/0.0.0.0), clients on Floor_1 APs (VLAN 101) will not receive any IP address, let alone one from the 10.0.20.0/24 subnet. Only Corp.102 clients (Office group) receive addresses from 10.0.20.0/24.

NEW QUESTION 19
In FortiLink NAC deployment, which FortiOS feature is used to evaluate endpoint posture before granting access?
Response:

DHCP snooping

Switch controller global status

NAC policy checks

Static MAC filters

NEW QUESTION 20
What is the primary outcome when a device is quarantined on a FortiGate-managed network?
Response:

The device is forced to reauthenticate using 802.1X

The device’s MAC address is blocked by DNS filter

The device is denied access to the network through policy enforcement

The device is redirected to a captive portal for login

NEW QUESTION 21
Refer to the exhibits which show the FortiSwitch and FortiGate interface configurations.
FortiSwitch VLAN configuration

Port2 interface configuration

Which two statements describe how port2 handles tagged and untagged traffic? (Choose two.) Response:

Port2 accepts ingress tagged traffic for VLAN IDs 4091 and 4093 only.

Port2 assigns ingress untagged traffic to VLAN 100.

Port2 accepts ingress untagged traffic for VLAN IDs 100, 4091, and 4093 only.

Port2 tags egress traffic for VLAN 100.

NEW QUESTION 22

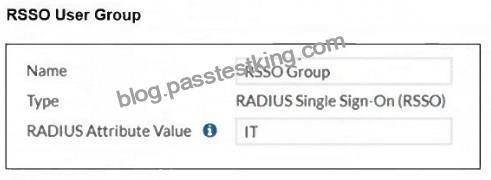

Refer to the exhibits.

You have configured RADIUS single sign-on (RSSO) on a FortiGate device, ensuring that all settings are correct and the integration with the RADIUS server is correctly established.
Communication between FortiGate and the RADIUS server is happening through port3. After testing, you notice that while user authentication and RSSO activity are functioning as expected, the RADIUS server does not display session logs or detailed usage information.
What is the most likely reason for this issue?

Misconfigured RADIUS shared password

Disabled rsso-radius-response

Misconfigured interface port3

Mismatched user radius sso-attribute and radius attribute value

The issue occurs because rsso-radius-response is disabled. Without enabling RADIUS response accounting, FortiGate does not send session logs or detailed usage information back to the RADIUS server, even though authentication and RSSO activity work. Enabling set rsso-radius- response enable ensures the RADIUS server receives accounting details.

NEW QUESTION 23
Which encryption protocols can CAPWAP use to secure the data channel when communicating between a FortiGate wireless controller and FortiAP?
Response:

WPA3 and TLS

SSH and SSL

DTLS and IPsec

SSL/TLS and IPsec

NEW QUESTION 24
What is the expected behavior when enabling auto TX power control on a FortiAP interface?

FortiGate monitors the signal strength of nearby AP interfaces and adjusts its own transmit power every
30 seconds to match the signal strength of the adjacent AP

FortiGate measures the signal strength of nearby FortiAP interfaces every 30 seconds and adjusts their transmit power to ensure they remain detectable at -70 dBm.

FortiGate periodically measures the signal strength of the weakest associated client and adjusts the AP radio power to align with the detected signal strength of that client.

The AP periodically evaluates the signal strength of its own transmission from the client perspective and adjusts its power to ensure the signal is detected at -70 dBm.

Auto TX power control on FortiAP is an RF-optimization feature:
* FortiGate (as wireless controller) continuously evaluatesRSSI of associated clientson each FortiAP radio.
* The algorithm focuses on theweakest client(the one with the worst signal) and adjusts the AP’s transmit power so that this client’s signal level stays within a configured / target range.
* This helps balance coverage and limit co-channel interference: APs don’t transmit at maximum power when clients are close, but will increase power when the weakest client signal drops too low.
Therefore the correct behavior description is:
#C- AP power is adjusted based on the weakest associated client’s signal.
Why the others are wrong:
* AandBtalk about matching nearby APs’ power or forcing everything to -70 dBm, which is not how FortiAP auto TX works.
* Dincorrectly states the AP “evaluates its own transmission from the client perspective”; the AP can only infer client-side conditions from theclient’s RSSI at the AP, not the inverse.

NEW QUESTION 25
When integrating FortiAuthenticator with an LDAP server, which parameter must be correctly defined to perform user lookups?
Response:

Group name

DN (Distinguished Name)

Shared secret

Syslog filter

NEW QUESTION 26
You are troubleshooting an issue where users are being intermittently redirected to an error page after submitting their login credentials on a captive portal. As part of your troubleshooting steps, you review the POST parameters sent from the client to the authentication server.
What should you check in the magic ID within the POST parameters to help resolve the issue?

Determine whether the magic ID has expired, which could cause the server to reject the authentication request.

Validate that the magic ID contains encryption keys for securing the user’s password during transmission.

Verify whether the magi ID matches the session generated by the server to ensure the request is valid.

Confirm that the magic ID is tied to the correct redirection URL for the user session.

The magic ID in the POST parameters must match the session generated by the authentication server. If the magic ID does not align with the active session, the server treats the request as invalid, leading to errors after login attempts.

NEW QUESTION 27
Which steps can help restore communication between FortiGate and a FortiSwitch?
(Choose two)
Response:

Restart FortiSwitch’s SNMP agent

Check FortiLink interface status

Verify DHCP Option 138

Set switch role to “Root Bridge”

NEW QUESTION 28
Refer to the exhibit.

Which shows the WTP profile configuration.
The AP profile is assigned to two FAP-231F APs that are installed in an open plan area.
The first AP has 32 clients associated with the 5 GHz radios and 22 clients associated with the 2.4 GHz radio.
The second AP has 12 clients associated with the 5 GHz radios and 20 clients associated with the 2.4 GHz radio.
A dual-band-capable client enters the area near the first AP and the first AP measures the new client at – 3 3 dBm signal strength. The second AP measures the new client at -43 dBm signal strength.
If the new client attempts to conned to the student 01 wireless network, which AP radio will the client be associated with?

The first AP 2.4 GHz interface provides a stronger signal, which clients often prioritize.

The first AP 5 GHz interface because it has a stronger signal.

The second AP 5 GHz interface has fewer clients, which ensures better performance despite the weaker signal.

The second AP 2.4 GHz interface is preferred over 5 GHz for better speed and lower interference.

This question combines two FortiAP behaviors shown in the study guide:
* AP handoff for load balancing
* Frequency handoff for band steering to 5 GHz
From the WTP profile in the exhibit:
* set handoff-rssi 30
* set handoff-sta-thresh 30
The LAN Edge 7.6 Architect study guide explains AP handoff like this:
“If the number of clients is already at the defined threshold, new clients will be redirected to join the least busy nearby AP.” It also states: “The handoff-sta-thresh parameter defines the threshold value that triggers the handoff protocol for new clients.” So, because the first AP 5 GHz radio already has 32 clients, it is above the threshold of 30, meaning AP handoff can be considered.
However, the same extract adds an important condition:
“The handoff-rssi threshold defined in the AP profile applies when a handed-off client tries to connect to the second AP. The client ‘ s signal strength must be equal to or greater than the defined RSSI value on the new AP.” The second AP measures the client at -43 dBm. Based on the configured handoff RSSI threshold of 30, the second AP does not satisfy the required signal condition for the handoff target, so FortiGate does not redirect the client there.
Now consider band selection. The study guide explains frequency handoff:
“Frequency handoff is a band steering technique that FortiGate uses to encourage clients to use the 5 GHz frequency instead of the 2.4 GHz.” It also says:
“When a client tries to connect, FortiGate checks whether it can support 5 GHz and, if so, how good the signals are. If a client supports the 5 GHz frequency and the signal is strong enough to connect, FortiGate ignores the client’s requests to join the network on 2.4 GHz until the request times out. The client will then automatically try to join the same network using 5 GHz.” Because the client is dual-band capable and the first AP sees it at a very strong -33 dBm, FortiGate will steer it to 5 GHz on the first AP.
Why the other options are incorrect:
A). Incorrect. The study guide says frequency handoff encourages dual-band clients to use 5 GHz instead of
2.4 GHz when the 5 GHz signal is strong enough
C). Incorrect. Even though the second AP 5 GHz radio has fewer clients, AP handoff only occurs if the target AP meets the configured handoff RSSI requirement. The study guide explicitly makes that a condition D). Incorrect. 2.4 GHz is not preferred here. The study guide specifically says FortiGate uses frequency handoff to encourage 5 GHz for dual-band-capable clients Final verified conclusion:
The client will associate with the first AP 5 GHz radio because:
* the client is dual-band capable
* FortiGate prefers 5 GHz through frequency handoff
* the first AP has the stronger signal at -33 dBm
* the second AP does not qualify as the handoff target under the configured handoff RSSI condition

NEW QUESTION 29
Which two broad categories must be considered for wireless troubleshooting when evaluating key wireless metrics?

Wireless range and network speed

Signal interface and device compatibility

Network reliability and signal interference

Wireless health and wireless capacity

Wireless troubleshooting focuses on two main categories: wireless health, which evaluates connectivity, signal strength, and performance stability, and wireless capacity, which assesses the ability of the network to handle the number of clients and traffic load effectively.

NEW QUESTION 30
What is the primary function of FortiLink NAC in a LAN environment?

To manage FortiSwitch devices and apply manual firewall rules

To extend security policies across FortiGate firewalls only

To ensure devices are manually placed in VLANs based on their user roles

To automate device onboarding and verify security posture

FortiLink NAC automates device onboarding by identifying endpoints and dynamically enforcing access control based on their identity and security posture, ensuring only compliant devices receive appropriate network access.

NEW QUESTION 31
Which statement about generating a certificate signing request (CSR) for a CER certificate is true?

In accurate or missing fields in the CSR will prevent the CA from validating the request, leading to the rejection of the certificate and possible delays in the deployment process.

CSR fields are primarily used for internal recordkeeping by the requesting organization, and only the public key in the CSR must be accurate for successful certificate signing.

The fields in the CSR are primarily for documentation purposes; any missing or incorrect information will be automatically corrected by the CA during the signing process.

If key fields like the common name (CN) and organization (O) are incorrect, the certification authority (CA) will still issue the certificate, but it may not be trusted by certain applications or systems that rely on accurate field information for validation.

When generating a CSR, the fields (such as CN, O, OU, etc.) must be accurate because the CA validates this information before signing the certificate. Missing or incorrect fields will cause the CA to reject the CSR, leading to delays in the certificate issuance and deployment process.
